A provider of numerous types of fans including exquisite, antique finishes to fans specially designed with art of technology in dual color and High Speed Fans, GUTS entered the fan business since 2008 and since then, has never looked back.
With innovative designs and excellent finishes being the key elements, GUTS-CASA has successfully been able to capture the essence of the customers' needs. An important appliance for every household, it is important that a fan functions properly giving sufficient air flow. Be it a wall fan, ceiling fan, table fan, an exhaust or a personal fan, the entire range from GUTS is built with the best materials to give optimum results and last long. Apart from the GUTS guarantee, there are multiple other benefits that you can avail. Check out the latest fan range online and select what suits you the best. We bring forward a collection of classic, stylish and efficient fans that you can install in your homes to make them beautiful. Match the fans with your furniture, walls, curtains etc. and find relevant options for your living room, bedroom, dining, balconies, offices, shops and more.

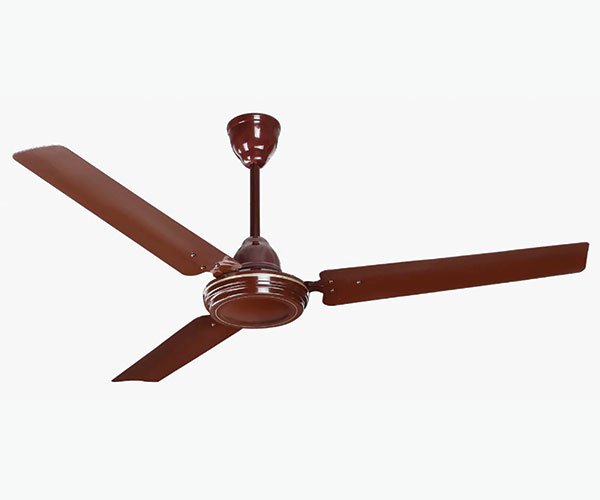

CEILING FAN
- Sweep size: 900 or 1200 mm
- No. of blades: 3 or 4
- Down rod length: 24.5 mm
- Remote control option: Optional
- Blade Finish: Powder Finish
- Color Shades: Brown / Ivory / White
- Rated Speed (RPM): 370
- Air delivery (m³/min): 230
- Power Consumption (W): 80
- Rated Voltage (V): 220 to 240V AC
- Rated Frequency (Hz): 50 Hz

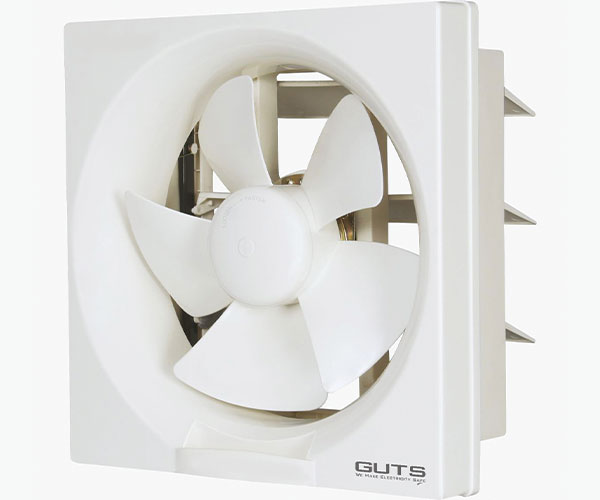

EXHAUST FAN
Designed to effectively combat pollution, GUTS Exhaust Fans quietly and efficiently draw away smoke, odours, dust, dampness and stale air, thus allowing breeze of fresh air into environment. These fans perfectly compliment the breeze of ceiling and desk/wall fans by providing a comfortable atmosphere inside with a constant supply of healthy fresh air.
Features
- Wide range of sweeps to choose from, with suitability for single or three phase AC supply.
- Reversibility by change of blade mounting.
- Metal frame with rubber mounting for silent operation.
- Heavy duty, totally enclosed, energy efficient, 2 ball bearing induction motors.
- Precisely balanced aerodynamically contoured metal blades with die cast aluminum spider/hub.
- Long lasting Epoxy powder coating.
- Availability of accessories like front back protective guard for safety and square gravity louvers.
- Generally conforming to IS: 2312-1967.
| S.No. | Sweep | Speed | Power Consumption | Air Delivery |
|---|---|---|---|---|
| (MM/INCHES) | (RPM) | (WATTS) | (M3/MIN) | |
| 1 | 600 mm/24 inch | 900 | 60 | 185 |
| 2 | 900 mm/36 inch | 400 | 60 | 170 |
| 3 | 1200 mm/48 inch | 370 | 60 | 195 |
| 4 | 1400 mm/56 inch | 340 | 60 | 250 |
SELECTION CHART
Size of Room
Sweep (mm/Inches)
For Small, Cabins & Low Ceiling Fans
600 mm/24 inch
Below 7 Sq. M.
900 mm/36 inch
10-12 Sq. M
1200 mm/48 inch
For Large Halls, Offices
1400 mm/56 inch
